传输速率高达1000Mbps，传输带宽达150MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有D级链路和超五类的应用。 The transmission rate is up to 1000Mbps, and the transmission bandwidth is 150MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all D level links and Cat.5e applications.
柔软性好、耐弯折、传输性能优越、电气性能稳定。 Good softness、bending resistance、good transmission performance、electrical performance stable.
软外护套,美观、柔软、有韧性，施式、理线更方便。 The soft outer sheath is beautiful, soft and flexible, and it is more convenient for application and line.
线径细小、重量轻、通风性好、散热性强。 Small wire diameter、light-weight、Good ventilation、Strong heat dissipation.

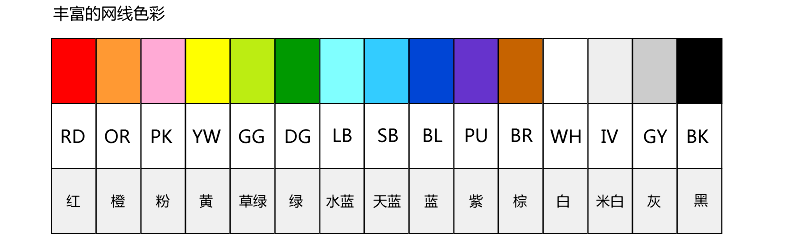

外被具有15种颜色可供选择，机房管理高效化。 Ecderon has 15 colors available, room management efficiency.
内部填充防弹丝，抗张强度更是超过普通产品，可以放心施工。 Internal stuffed bulletproof silk, tensile strength surpass the standard products, reassuring on construction.
更适合布线密集场合、占用空间小、理线更顺畅。 More suitable for dense wiring、small in occupation、more easier to handing the wires.
理线比普通的线缆更方便、美观，节省约50%的布线空间，更利于机房柜的通风、散热。 The line is more convenient and beautiful than the ordinary cable. It saves about 50% of the wiring space, and is more conducive to the ventilation and heat dissipation of the cabinet.

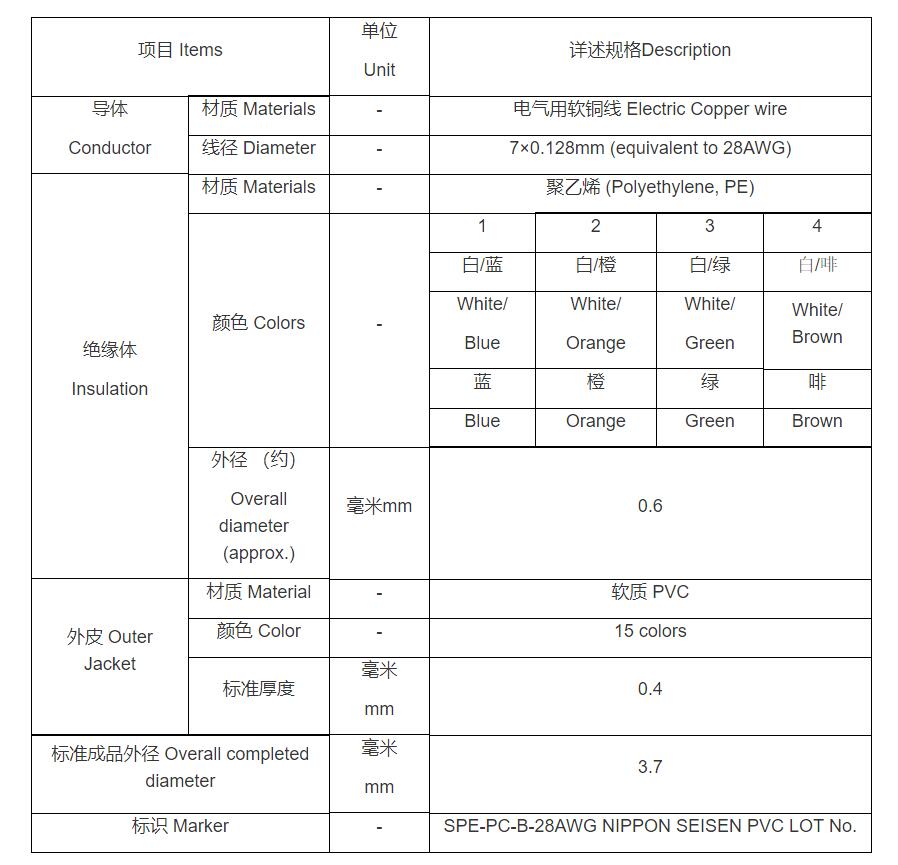

物理特性 Physical properties
电气性能远超过EN 50173-1，ISO/IEC 11801，ANSI/TIA-568C.2标准。 Electrical performance is far more than EN 50173-1, ISO/IEC 11801, ANSI/TIA-568C.2 standard.
阻燃性符合GB/18380.12，JIS C 3005标准。 The flame retardancy is in accordance with GB/18380.12, JIS C 3005 standard.

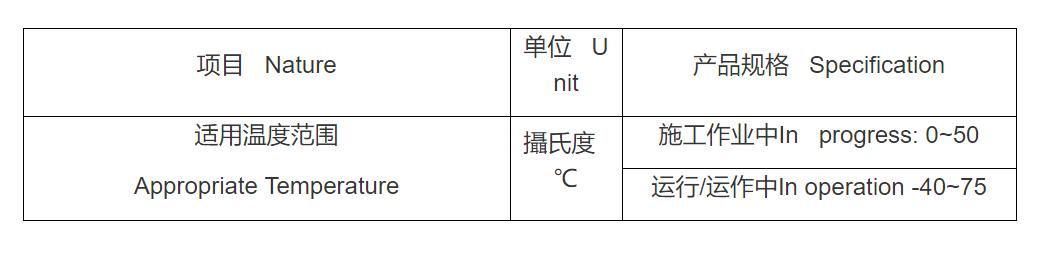

温度范围 Temperature range： 安装时 When installing：0℃ ~+50℃ 工作时 When working：-20℃~+60℃
适用规格 Applicable specifications
ANSI/TIA-568-C.2 100Ω平衡双绞线网络线 超五类网络线 ANSI/TIA-568-C.2 & 100Ω Twisted pair cable, Category 5 excess JIS X 5150:2004、ISO/IEC 11801:2002、YD/T 1019、JIS C 3005 60度倾斜燃烧测试 60 ℃ inclined combustion test
