六类屏蔽跳线

产品特征 Product features

•    电气性能远超过EN 50173-1，ISO/IEC 11801，ANSI/TIA-568C.2标准。
     Electrical performance is far more than EN 50173-1, ISO/IEC 11801, ANSI/TIA-568C.2 standard.
    阻燃性符合GB/18380.12，JIS C 3005标准。
     The flame retardancy is in accordance with GB/18380.12, JIS C 3005 standard.

•   传输速率高达1000Mbps，传输带宽达350MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有E级链路和六类的应用。
     The transmission rate is up to 1000Mbps, and the transmission bandwidth is 350MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all E level links and six kinds of applications.

•    柔软性好、耐弯折、传输性能优越、电气性能稳定、传输延时低，具有优异的串扰、回损等性能。
    Good softness, bending resistance, superior transmission performance, stable electrical performance, low transmission delay, excellent performance of crosstalk and return loss.

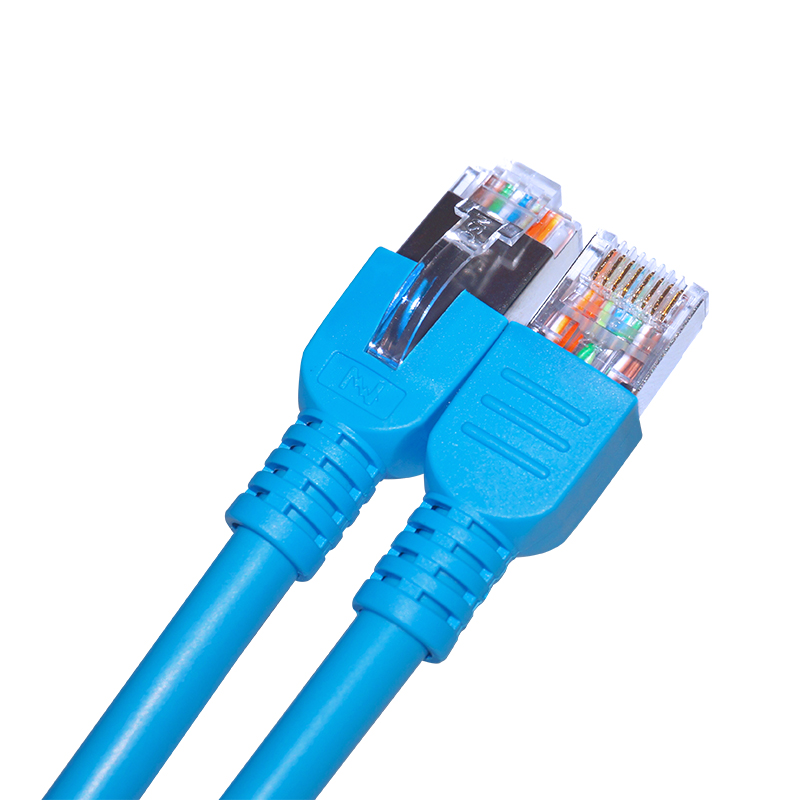

•    RJ45水晶头采用进口PC料，金针采用磷青铜，整体表面镀金，镀金厚度为50U",确保优良电气性能和抗氧化性。
    RJ45 crystal head adopts imported PC, gold needle uses phosphorus bronze, gold plating on the whole surface, gold plating thickness of 50U ", to ensure excellent electrical performance and oxidation resistance.

•    水晶头屏蔽层采用合金铜片全包方式，抗腐蚀、抗氧化、抗撞击及优良屏蔽性能。
    The crystal head shielding layer adopts all kinds of alloy copper sheet, which is resistant to corrosion, antioxidation, impact resistance and excellent shielding performance.

•    手柄卡位弧形设计(日线专利)，防止手柄卡位到挂损坏，提升施工效率。
    Handle position arc design (daily patent), hang card to handle to prevent damage, improve construction efficiency.

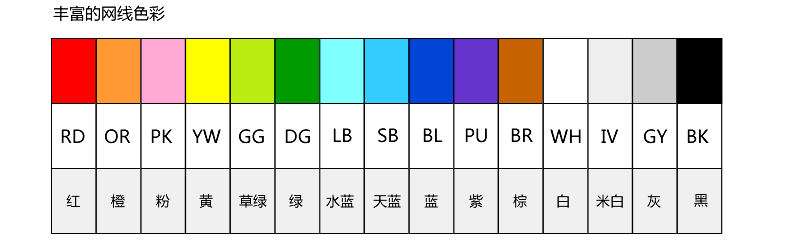

•    外被具有多种颜色可供选择，机房管理高效化。
    Ecderon has a variety of colors available, room management efficiency.

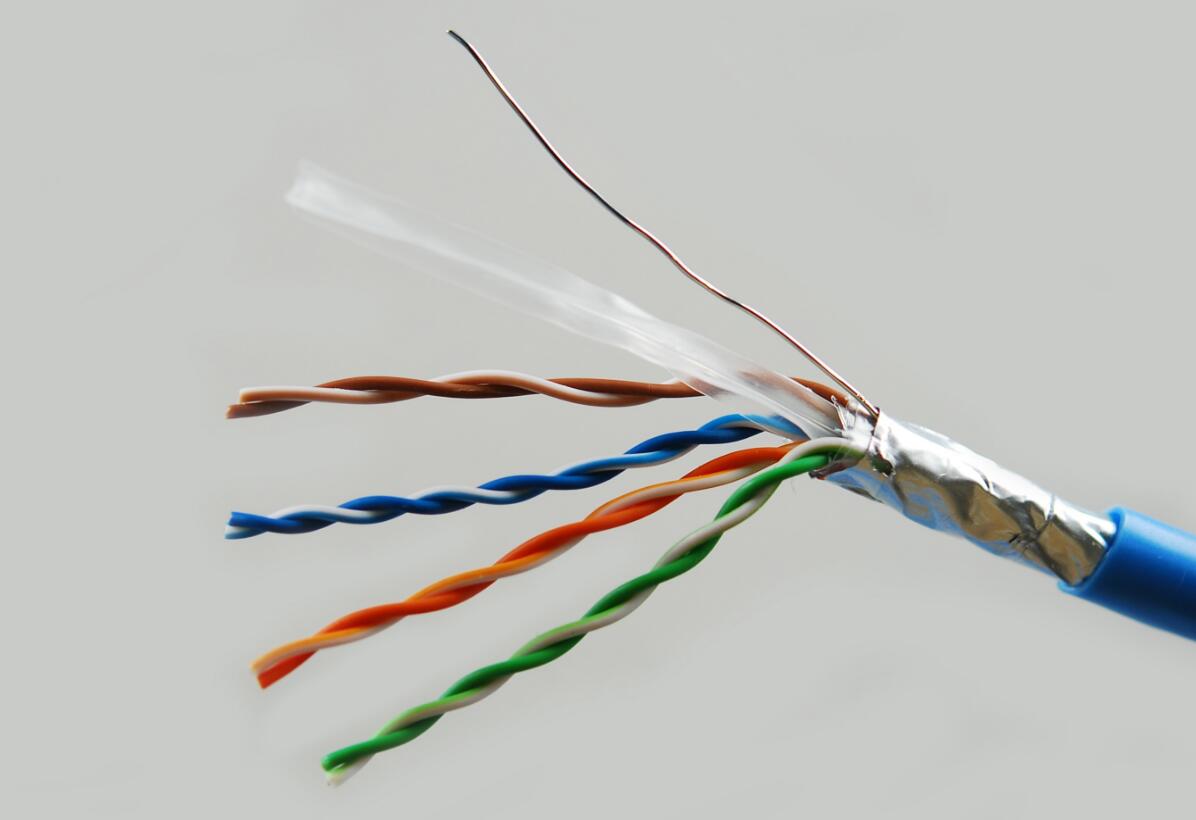

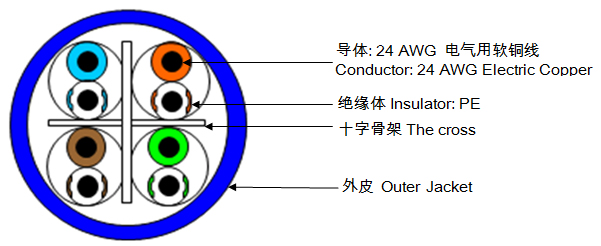

•    可根据需要选择单股导体跳线（0.54mm）或多股导体跳线（7/0.21mm）。
    Single conductor jumper (0.54mm) or multiple conductor jumper line (7/0.21mm) can be selected as required.

•    符合T568A/T568B通用线序。
    Conforms to the T568A/T568B general line order.


物理特性 Physical properties



•    压接弹片：磷青铜，整体50μ inch 镀金。
     Pressing shrapnel: phosphorus bronze with 50 micron inch gold plating.
•    外壳：磷青铜整体镀镍。
•    插拔次数 Durability：≥ 1000，卡位弹片 shrapnel：≥ 1500
•    工作温度：-20℃-70℃
     Working temperature: -20℃-70℃



生产标准及规范 Production standards and specifications
• 国际ISO/IEC 11801:2002; 美国ANSI/TIA-568-C.2;
  欧洲EN50173:2002; 中国GB50311-2007




应用领域 Areas of application
•    复杂电磁环境下，及按规定需要屏蔽的场合。
     In complex electromagnetic environment, and the occasion required to be shielded according to the requirements.
•    工作区域、集中点、管理间、设备间子系统应用、高密度网络设备连接。
     Work area, centralized point, management room, equipment subsystem application, high density network device connection.
•    1000Mbps及更高以太网应用
     1000Mbps and higher Ethernet applications.

•
