传输速率高达1000Mbps，传输带宽达350MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有E级链路和六类的应用。 The transmission rate is up to 1000Mbps, and the transmission bandwidth is 350MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all E level links and six kinds of applications.

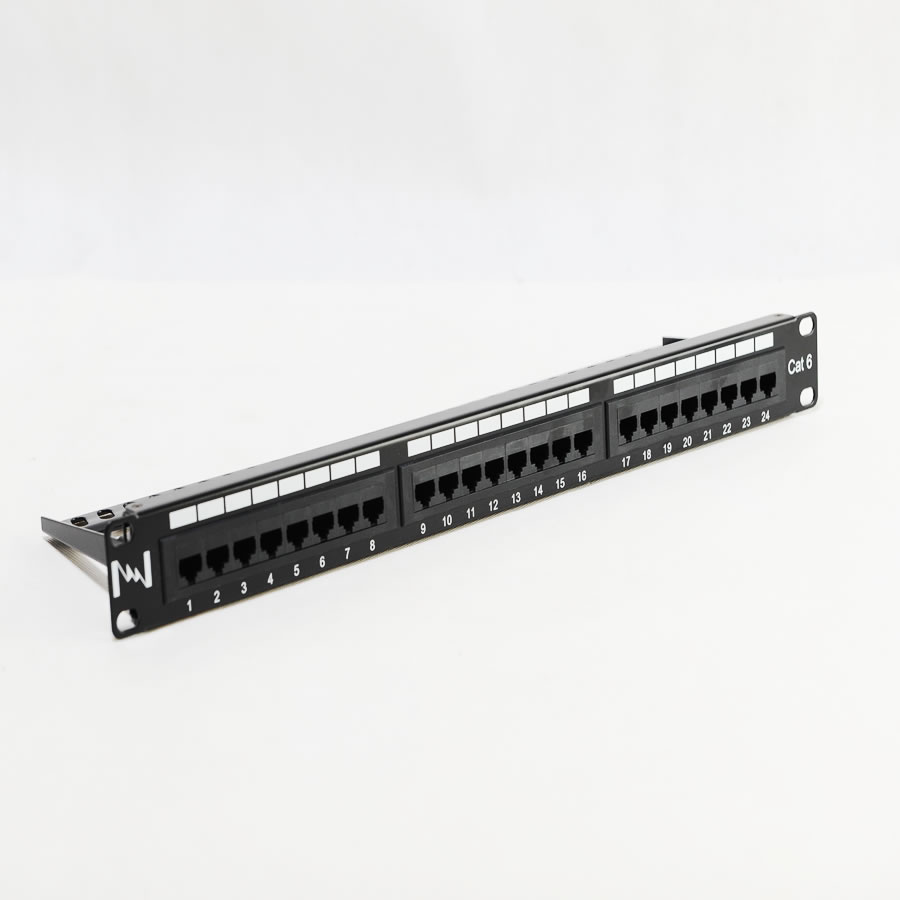

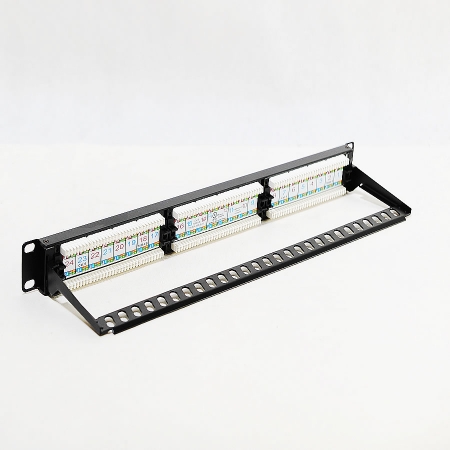

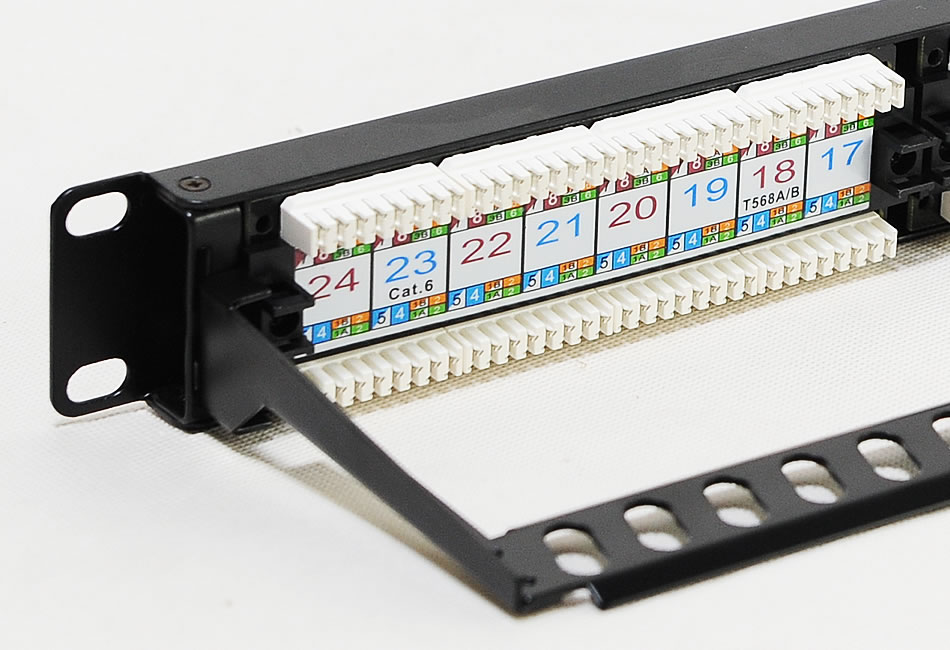

电气性能远超过IEC60603-7，ANSI/TIA-568C.2标准。 Electrical performance is far more than IEC60603-7, ANSI/TIA-568C.2 standard. RJ45端口，无铅印刷电路板，抗氧化，在恶劣环境中保护内部IDC触点正常工作。 RJ45 port, lead-free printed circuit board, antioxidant, protection of internal IDC contacts in bad environment to work normally. 金针为磷青铜丝线镀金，防止表明氧化，提高接触性能，保证性能及适用寿命。 Gold needles are plated for phosphor bronze wire to prevent oxidation, improve contact performance, ensure performance and shelf life. 通用线序标签支持T568A和T568B端接线序。 The general line sequence tag supports the T568A and T568B terminal wiring order. 配备白色预留标签和24位数字标签。 It is equipped with a white reservation label and 24 digit label. 坚固及易于安装，减少安装与操作费用，提供数字标签与嵌入式图标，方便端口识别，便于管理。 Sturdy and easy to install，reduce installation and operation costs，providing digital labels and embedded icons，convenient to identification port and easy to manage. 模块体采用阻燃ABS材料，阻燃等级符合UL94V-0，钢质底板整体结构保证产品更高的机械强度。 The module adopts flame retardant ABS material, the flame retardant grade conforms to UL94V-0, and the whole structure of steel plate ensures the higher mechanical strength of the product. 背部线缆托架控制线缆弯曲半径，提供合理的线缆走向，保证垂直进线方向，让施工后的系统更稳定，理线更清晰美观。 The back of cable bracket can control the bending radius of cable，provide a reasonable cable direction，guarantee the line entry in vertical. 自带理线托架，每个端口对应每个理线位，理线更方便、美观、高效。 Each port corresponds to each line position, and the line is more convenient, beautiful and efficient.
物理特性 Physical properties
金针：磷铜合金，整体50μ inch 镀金。 Golden needles: Copper alloy，50μ inch golding of the whole. 插头与插座的插合次数≥1000 Intercalation times of plugs and sockets：≥1000 IDC端子：磷青铜、整体镀镍、镀锡、卡接22-26AWG导体。 IDC terminal：Phosphor bronze、whole nickel plating、tin-plating、sticking 22-26AWG conductor. 拔插次数 Durability ≥ 1000次，端接寿命 Termipoint life≥ 200次。 温度 Temperature：
储存时 Storage：-40℃到70℃
安装时 Install：-10℃到60℃
工作时 Working：-10℃到60℃
