产品特征 Product features
-
传输性能超过ANSI/TIA 568-C.2六类标准。
Transmission performance exceeds ANSI/TIA 568-C.2 Cat.6 standards.
-

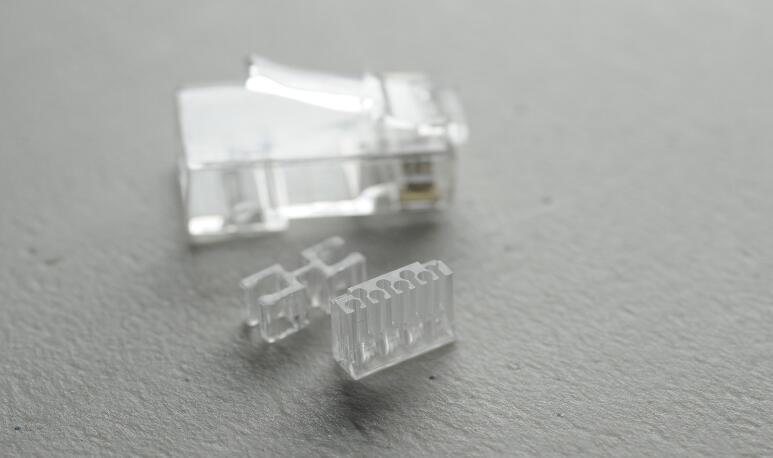

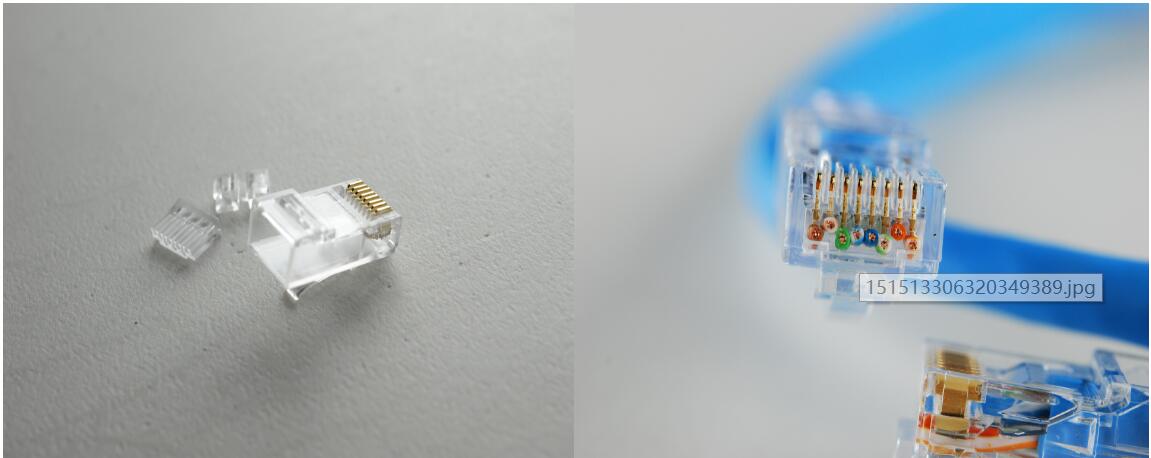

接线采用三件式设计，使线对之间的串扰降到最低。
The three piece design is used to minimize the crosstalk between line pairs.
塑胶壳采用优质透明PC料，阻燃符合UL94V-2，安全可靠。
High quality and transparent PC material used in plastic shell, accord with UL94V-2, it is safe and reliable.
金片磷铜合金，镀镍后再镀金，厚度达0.35mm，与模块接触使衰减降至最低程度。
The tinsel is make by copper alloy, Gold plating after nickel plating, The thickness is up to 0.35mm, contact with the modular and minimize the attenuation.
手柄部位采用半圆形设计，手感光滑且弹性好。
The part of handle is design to semicircle, it makes the hand feel is smooth and good elasticity.
物理特性 Physical properties
-
金针：磷铜合金，整体50μ inch 镀金。
Golden needles: Copper alloy，50μ inch golding of the whole.
塑胶壳：透明PC，UL94V-2
Plastic shell: TransparentPC, UL94V-2
插拔次数：≥750
Insert and Draw durability: ≥750
工作温度：-20℃-70℃
Working temperature: -20℃-70℃
生产标准及规范 Production standards and specifications
-
国际ISO/IEC 11801:2002; 美国ANSI/TIA-568-C.2;
欧洲EN50173:2002; 中国YD/T926.3-2001
应用领域 Areas of application
-
工作区域、集中点、管理间、设备间子系统应用。
Working areas、central location、management room、equipment room.
高密度网络设备连接和用户端跳线。
High density network device connection and user side jumper.
