传输速率高达1000Mbps，传输带宽达150MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有E级链路和六类的应用。
The transmission rate is up to 1000Mbps, and the transmission bandwidth is 150MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all D level links and Cat.5e applications.
绝缘层与导体的密着性(紧包)大于40N/50mm，且芯线退扭率要求达58%以上。
The tightness (tight) of the insulating layer and the conductor is greater than 40N/50mm, and the retreating rate of the core line is more than 58%.

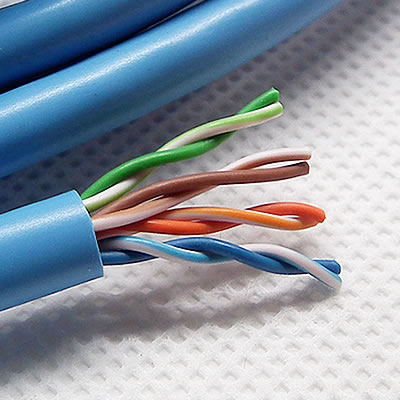

芯线绞线方向与成缆绞线方向为反方向，且成缆采用100%退扭，确保线缆结构的稳定性及笔直性。
The direction of the wire stranded wire is opposite to the direction of the cable stranded line, and the cable adopts 100% back twisting to ensure the stability and the straight character of the cable structure.

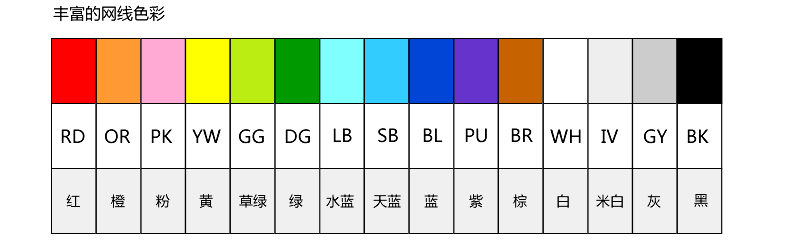

外被颜色具有15种颜色可供选择，且从外箱能清楚识别。
Coat color has 15 colors for choice, and from outside the box can clearly identify.
印字采用梯减方式，施工过程中能直观地知道每箱线所剩长度。
In the process of the printing, the length of each line can be intuitively known in the process of construction.
