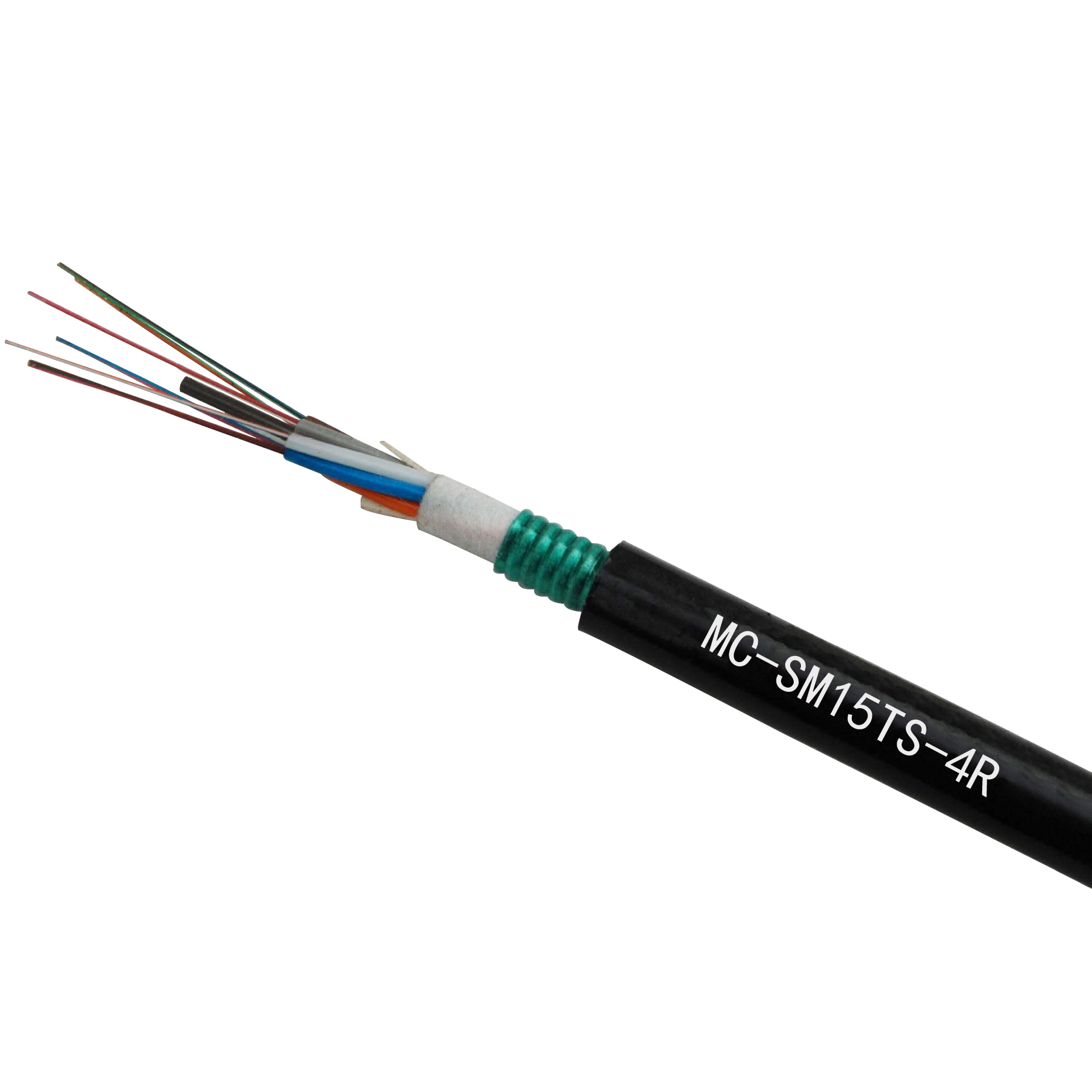

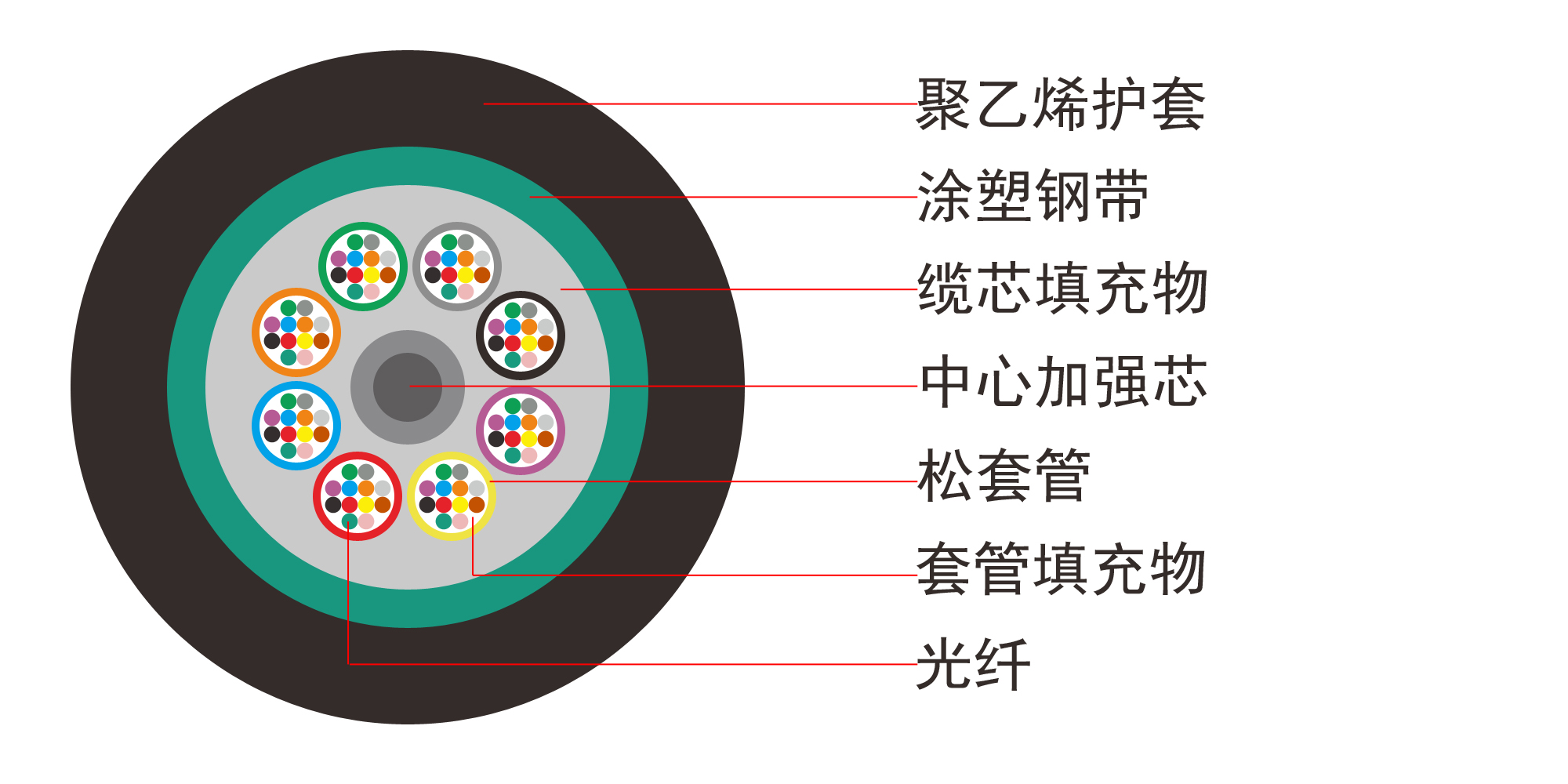

把9/125μm单模光纤或50/125μm、62.5/125μm多模光纤（二氧化硅）套进用高等阻水材料制成的松套管中，松套管内填充阻水化合材料。缆芯的中心是一根金属加强芯，对于多芯光缆来说加强芯需外加一层PE外套。松套管和填充绳围绕中心加强芯互绞紧凑和圆形的缆芯。缆芯内的缝隙充加阻水填充物。双面皱纹钢带（PSP）纵包后挤制聚乙烯护套成缆。
The 9/125μm or 50/125μm, single-mode fiber 62.5/125μm multimode fiber (silica) made of a higher water blocking material into loose tube and the casing filled with water blocking material.The core of the cable core is a metal reinforcing core. For the multi core cable, a PE coat is required to strengthen the core.The loose and round core of the loose and filled rope around the core core.The crevice in the cable core is filled with water blocking filler.The double sided wrinkled steel strip (PSP) is squeezed into a polythene sheath.
产品特征 Product features
松套管材质本身具有良好的耐水解性能和较高的强度。
The loose casing material itself has good hydrolysis resistance and high strength.
管内注充特性油膏，对光纤加以了关键性的密封保护。
The tube is filled with the characteristic ointment, which is the key seal protection for the fiber.
PE护套具有很好的抗紫外辐射性能。
PE sheath has good ultraviolet radiation resistance.
单根钢丝中心加强芯有助于光缆的平行和拉伸。
The core core of a single steel wire is helpful to the parallel and stretching of the optical fiber cable.
抗拉伸、耐磨损、抗冲击、耐压扁、可反复弯曲、扭转、弯折、曲绕（弯曲角度不超90°）枪击等，具备有很好的机械性能和温度特性。
Tensile, abrasion resistance, impact resistance, pressure can be flat, repeated bending, torsion, bending, bend (bending angle less than 90 DEG) shooting, have good mechanical and temperature performance.
双面皱纹钢带（PSP）提高了光缆的抗透潮能力。
The double sided wrinkled steel strip (PSP) improves the anti moisture ability of the cable.
传输速度快距离远、保密性好、抗电磁场干扰、绝缘性好、化学稳定性好、寿命长、损耗低具有很好的特性和经济效益。
It has high transmission speed, long distance, good secrecy, anti electromagnetic interference, good insulation, good chemical stability, long life and low loss. It has good characteristics and economic benefits.
物理特性 Physical properties
额定温度: -40~70℃
Rated temperature: -40~70℃
敷设方式：架空、管道、直埋。
Laying methods: overhead, pipe, direct burial.
适用范围：长途通讯、局间通讯。
Scope of application: long distance communication and inter office communication.
包装方式: 木轴。
<
