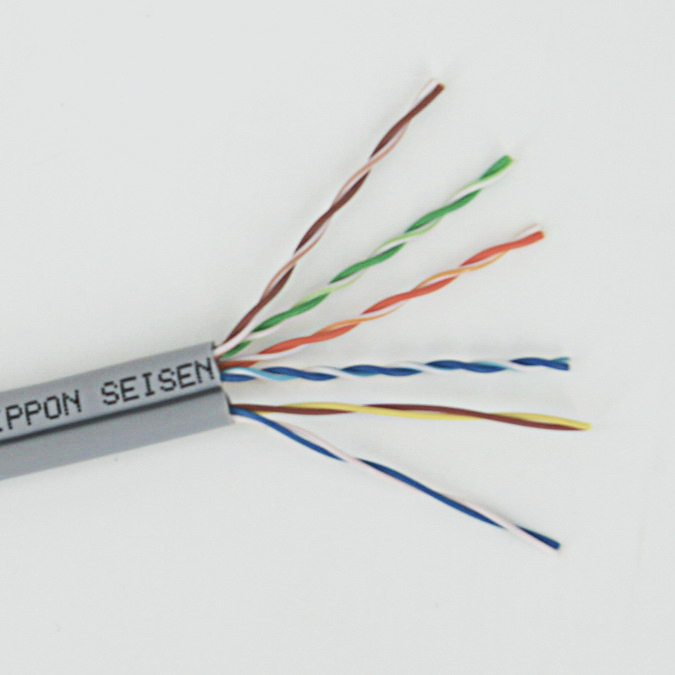

超五类/三类非屏蔽线缆

•    日线超五类/三类非屏蔽线缆是一种集网络线和电话线为一体的特殊线缆，让您的布线更轻松、快捷，布网络线的同时也布好电话线，极大提高了工作效益。
    CNISSEN's Cat.5/Cat.3 UTP Cables is a special cable integrated with the network line and the telephone line，make you wiring easier and faster，wiring the network line as well as wiring the telephone line，the efficiency of the work has been greatly improved.


•    传输性能参数超过ANSI/TIA 568-C.2超五类标准和ANSI/TIA 568B.C三类标准。
    The transmission performance parameters exceed the ANSI/TIA-568-C.2 Cat.5e standard and the ANSI/TIA 568B.C Cat.3 standard.


•    传输性能优越、机械性能强、温度特性好、电气性能稳定、传输延时低、阻抗性好、具有优异的串扰、回波损耗以及低插入损耗等特点。
    Good transmission performance、strong mechanical properties、good temperature characteristics、stable electrical performance、low transmission delay、good impedance、excellent crosstalk、return loss.


•    六对导线采用高密度聚乙烯（HDPE）绝缘层，线缆保持理想的线对平衡，提供了极佳的近端串扰性能。
    Six pairs of wires with high density polyethylene (HDPE) insulating layer，cables keeps the ideal line to balance，provided excellent near end crosstalk performance.


•    对绞和成缆采用了高退扭率，确保了产品内部结构稳定及信息传输过程中的稳定性和使用中的抗扭曲特性。
    The high back twist rate is adopted for the pair twist and cabling，the stability of the internal structure of the product and the stability in the process of information transmission and the anti twist characteristics in use are ensured.


•    外被材料采用了高品质聚氯乙烯（PVC）具有高抗张强度和伸长率的特点，保证良好的耐候性，抗老化能力强，延长使用寿命。
    High quality PVC used in layer materials，with the characteristics of high strength and elongation，good weatherability，strong anti-aging ability，prolongation of service life.


•    印字采用递减式喷印方法，给布线作业提供准确性和方便性。



•    工作环境：-20℃-60℃
    Working environment: -20℃-60℃

生产标准及规范 Production standards and specifications

•    国际ISO/IEC 11801：2002 美国ANSI/TIA-568-C.2
  欧洲EN50173：2002 中国GB50311-2007


应用领域 Areas of application
•   同时适用于室内数据和语音布线，适合D类链路和C类链路的应用。
    Gigabit Ethernet、10/100 Base-T、IEEE802.3、IEEE802.5、application of ATM2.4G


•   千兆以太网、10/100 Base-T、IEEE802.3、IEEE802.5、ATM2.4G应用
    Suitable for CATV/MATV system as subscriber lines，branch lines and trunk lines.


•    支持带CP点的90米永久链路。
    The 90 meter permanent link with CP points is supported.







•
