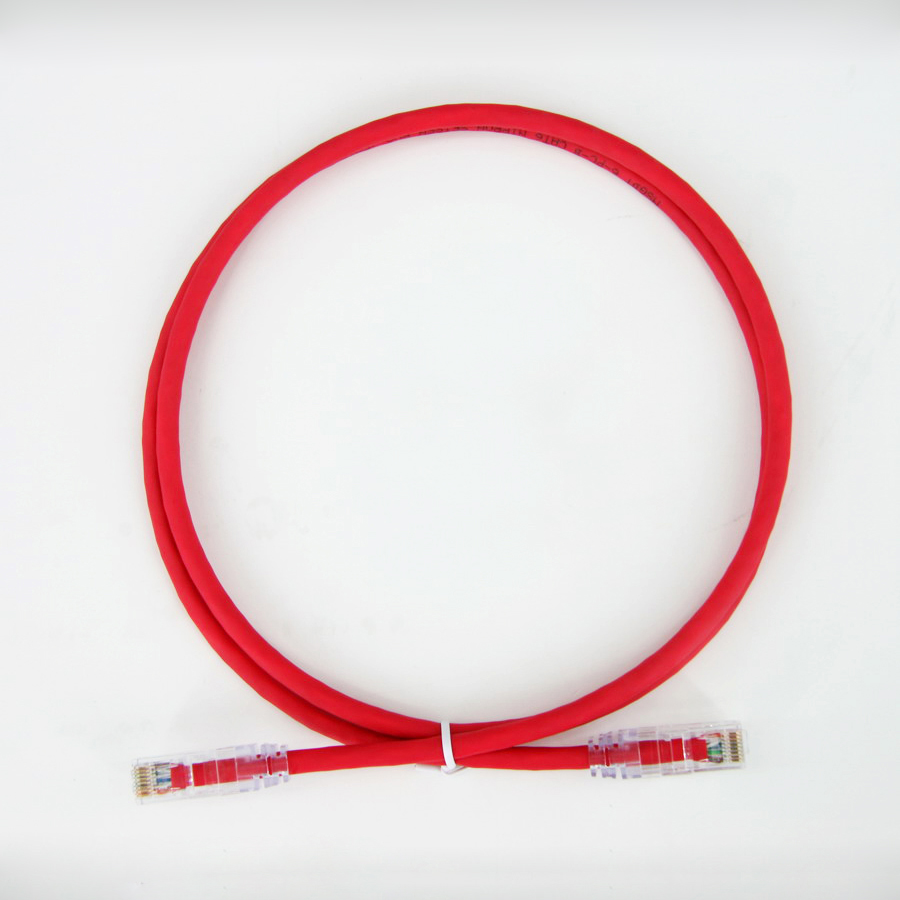

六类非屏蔽跳线

产品特征 Product features

•    传输速率高达1000Mbps，传输带宽达350MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有E级链路和六类的应用。
     The transmission rate is up to 1000Mbps, and the transmission bandwidth is 350MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all E level links and six kinds of applications.
    柔软性好、耐弯折、传输性能优越、电气性能稳定、传输延时低，具有优异的串扰、回损等性能。
     Good softness、bending resistance、good transmission performance、electrical performance stable、low transmission delay、excellent crosstalk、return loss.

•    RJ45水晶头采用进口PC料，金针采用磷青铜，整体表面镀金，镀金厚度为50U",确保优良电气性能和抗氧化性。
     RJ45 crystal head adopts imported PC, gold needle uses phosphorus bronze, gold plating on the whole surface, gold plating thickness of 50U ", to ensure excellent electrical performance and oxidation resistance.

•    水晶头压接弹片整体镀金，线缆和水晶头配合良好，保障整体的传输性能。
     Holistic gold plating of shrapnel with crystal head，the cable and the crystal head are well matched，guarantee the overall transmission performance.

•    超柔软外护套,美观、柔软、有韧性，施式、理线更方便。
    The super soft outer sheath is beautiful, soft and flexible, and it is more convenient for application and thread.

•    提供15种颜色和多种长度及不同防火等级外护套，方便各类系统环境应用。
    Provide 15 colors and multiple lengths and different fire protection grades of outer jecket, convenient for using on all kings of system environment.

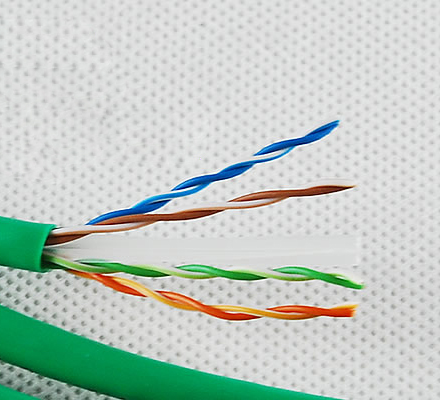

•    可根据需要选择单股导体跳线（0.54mm）或多股导体跳线（7/0.21mm）。
    Can select Single conductor jumper(0.54mm) or Multi strand conductor jumper(7/21mm) on demand.

•    符合T568A/T568B通用线序。
    Accord with general line order , T568A/T568B.


  物理特性 Physical properties



•    电气性能远超过EN 50173-1，ISO/IEC 11801，ANSI/TIA-568C.2标准。
     Electrical performance is far more than EN 50173-1, ISO/IEC 11801, ANSI/TIA-568C.2 standard.
•    阻燃性符合GB/18380.12，JIS C 3005标准。
     The flame retardancy is in accordance with GB/18380.12, JIS C 3005 standard.
•    压接弹片：磷青铜，整体50μ inch 镀金。
     Crimp crystal head shell splinter：Phosphor bronze, 50μ inch gold-plated overall.
•    插拔次数 Durability：≥ 1000，卡位弹片 shrapnel：≥ 1500
•    工作温度：-20℃-70℃
     Working temperature: -20℃-70℃



生产标准及规范 Production standards and specifications
• 国际ISO/IEC 11801:2002; 美国ANSI/TIA-568-C.2;
  欧洲EN50173:2002; 中国GB50311-2007




应用领域 Areas of application
•    工作区域、集中点、管理间、设备间子系统应用。
     Working areas、central location、management room、equipment room.

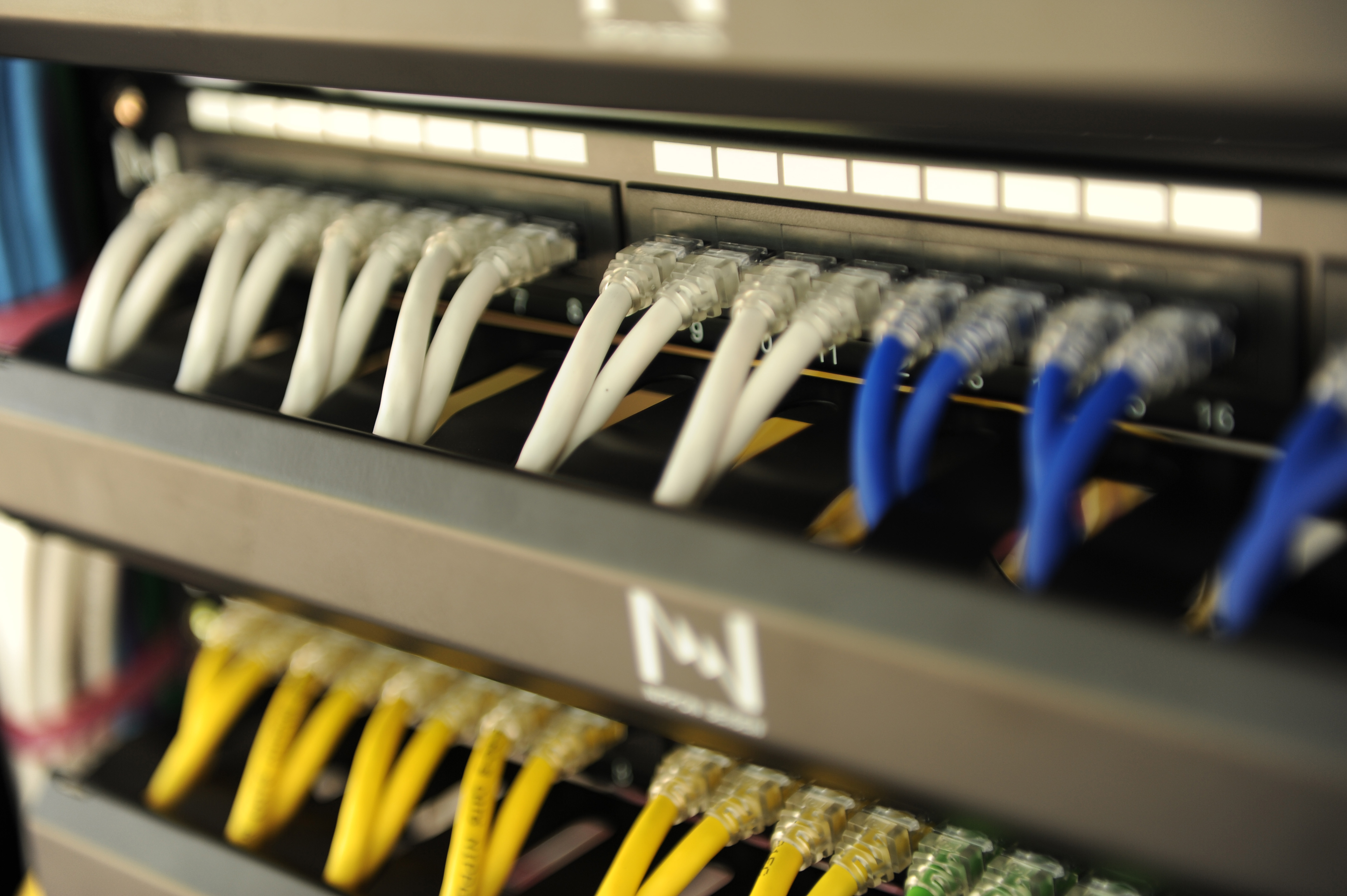

•    高密度网络设备连接和用户端跳线。
     High density network device connection and user side jumper.

•
