六类多股非屏蔽线缆





  • 六类多股非屏蔽线缆



六类多股非屏蔽线缆

产品型号 : 0.5-4P NSGDT6-PC

产品规格 : 24AWG UTP

  •
  •

  •
  •

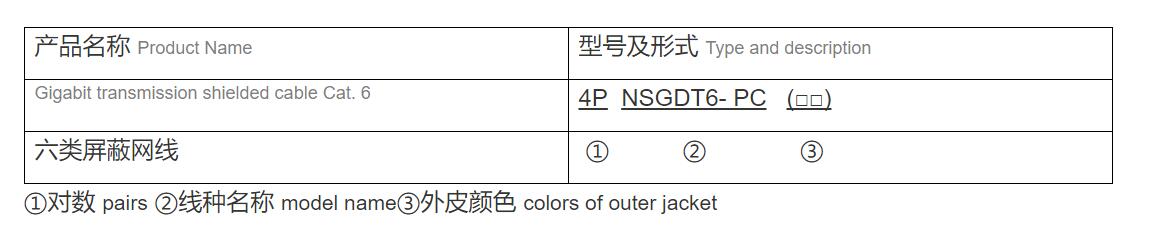

产品名称及型号 Name & type, description

  •
  • 适用规格 Applicable specifications



  •     ANSI/TIA-568-C.2 100Ω平衡双绞线网络线 六类非屏蔽网络线
  •       ANSI/TIA-568-C.2 & 100Ω Twisted pair cable, Category 6
  •     JIS X 5150:2004、ISO/IEC 11801:2002、YD/T 1019、JIS C 3005 60度倾斜燃烧测试
  •       60 ℃ inclined combustion test
  • 使用材料:



  •     符合RoHS 指令要求
  •       Materials compile with RoHS requirement
  •

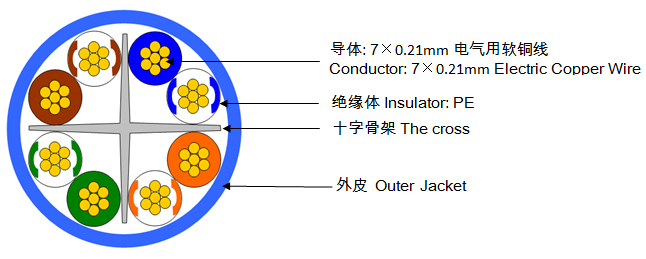

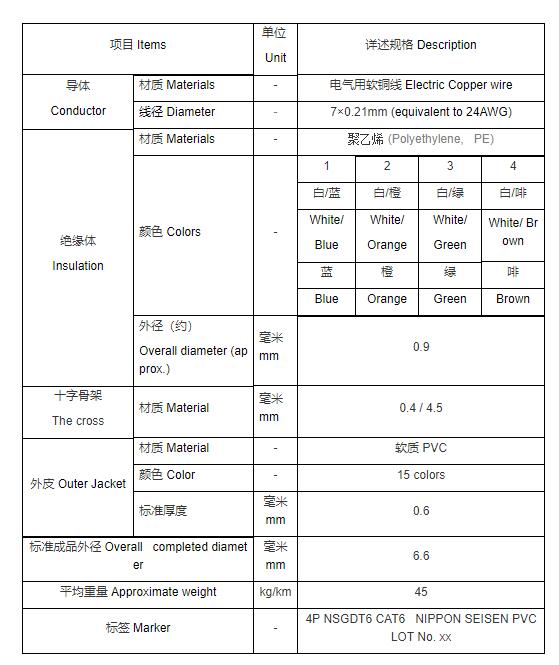

    构造 structure



  •
  • 机械特性Mechanical characteristic



  •

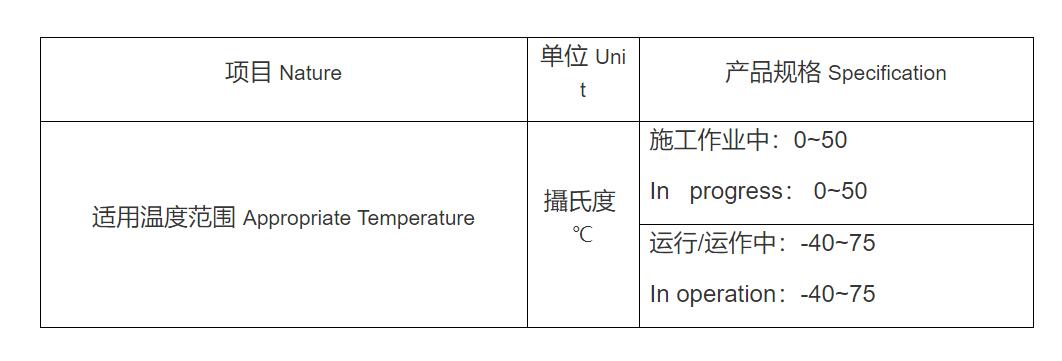

  • 环境特性 Environmental natures



  •

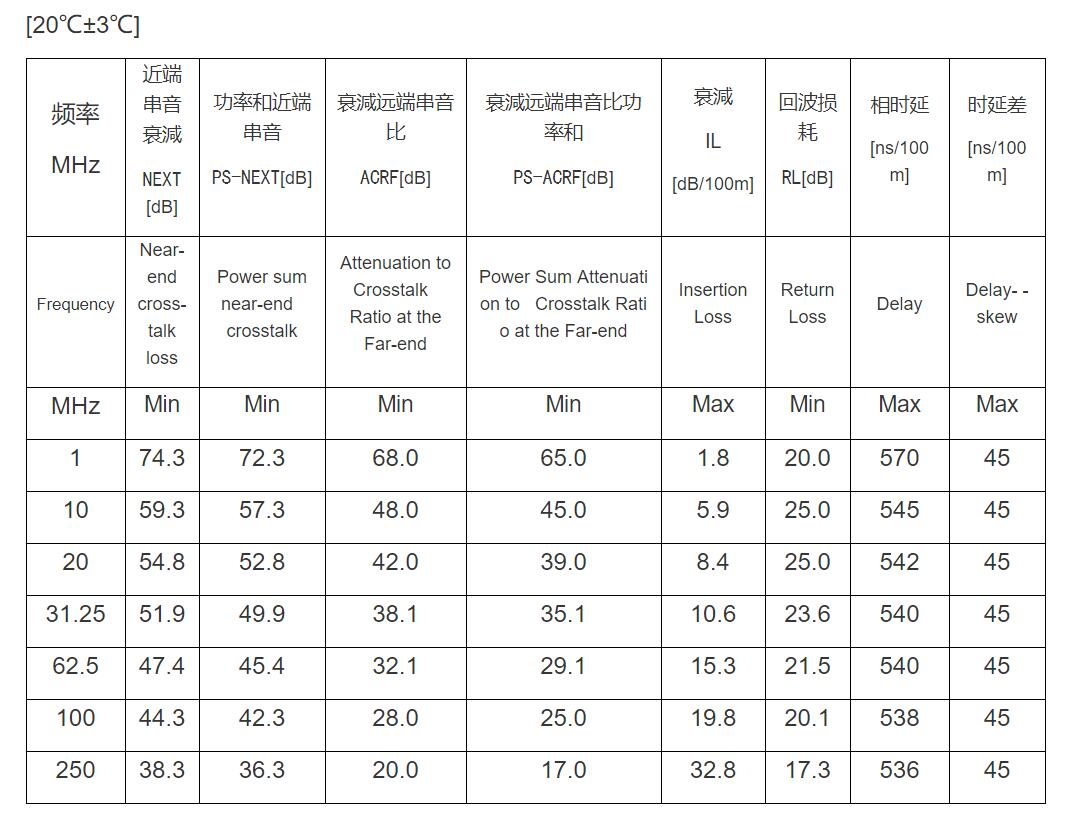

  • 电气特性 Electrical characteristic



  •




  •

    包装 Packing



  •



  •
