传输速率高达1000Mbps，传输带宽达150MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有D级链路和超五类的应用。 The transmission rate is up to 1000Mbps, and the transmission bandwidth is 150MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all D level links and Cat.5e kinds of applications.
柔软性好、耐弯折、传输性能优越、电气性能稳定、传输延时低，具有优异的串扰、回损等性能。 Good softness, bending resistance, superior transmission performance, stable electrical performance, low transmission delay, excellent performance of crosstalk and return loss.
RJ45水晶头采用进口PC料，金针采用磷青铜，整体表面镀金，镀金厚度为50U",确保优良电气性能和抗氧化性。 RJ45 crystal head adopts imported PC, gold needle uses phosphorus bronze, gold plating on the whole surface, gold plating thickness of 50U ", to ensure excellent electrical performance and oxidation resistance.
水晶头压接弹片整体镀金，线缆和水晶头配合良好，保障整体的传输性能。 Holistic gold plating of shrapnel with crystal head，the cable and the crystal head are well matched，guarantee the overall transmission performance.

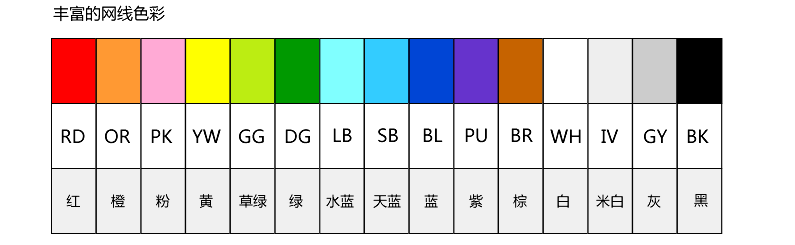

提供15种颜色和多种长度及不同防火等级外护套，方便各类系统环境应用。 Provide 15 colors and multiple lengths and different fire protection grades of outer jecket, convenient for using on all kings of system environment.

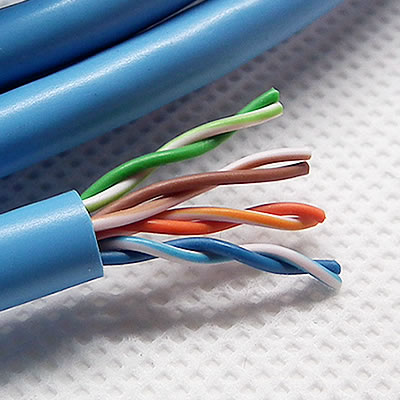

可根据需要选择单股导体跳线（0.51mm）或多股导体跳线（7/0.21mm）。 Can select Single conductor jumper(0.51mm) or Multi strand conductor jumper(7/21mm) on demand.
符合T568A/T568B通用线序。 Accord with general line order , T568A/T568B.
