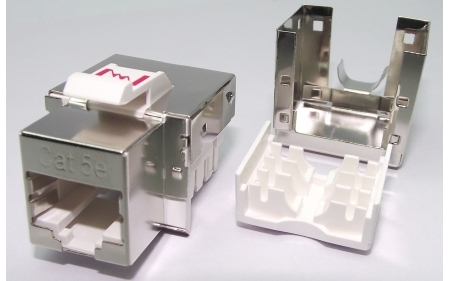

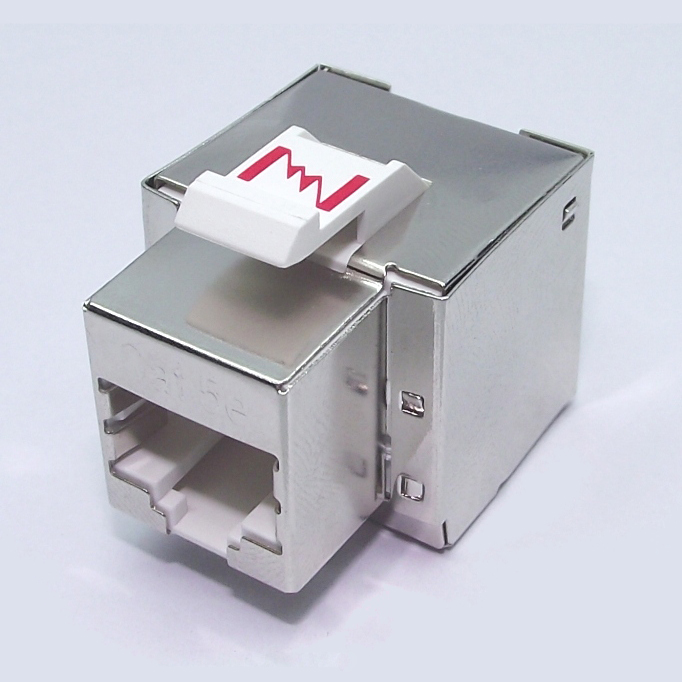

超五类屏蔽信息模块

产品特征 Product features

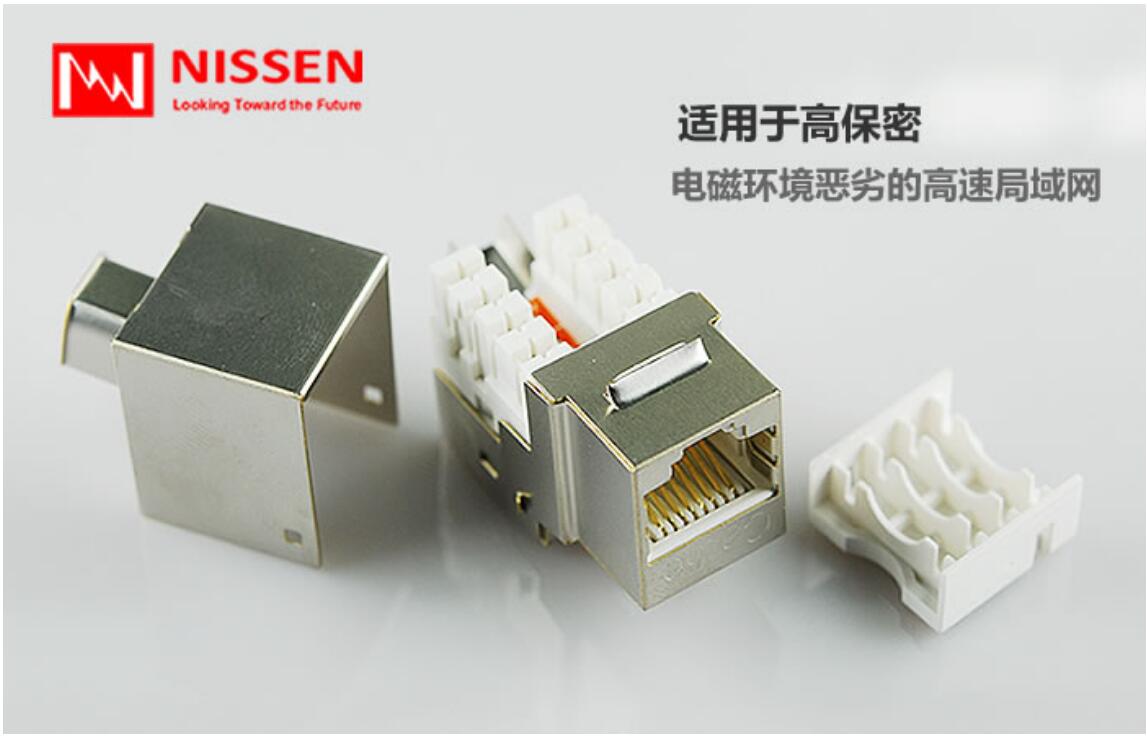

   电气性能远超过IEC60603-7，ANSI/TIA-568C.2标准，适用于高保密、电磁环境恶劣的高速局域网，为高保密单位提供安全、稳定的网络通讯。
   Electrical performance is far more than IEC60603-7, ANSI/TIA-568C.2 standard，suitable for high speed local area network with high security and bad electromagnetic.
   传输速率高达1000Mbps，传输带宽达150MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有D级链路和超五类的应用。
   The transmission rate is up to 1000Mbps, and the transmission bandwidth is 150MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all D level links and Cat.5e kinds of applications.
   RJ45端口，无铅印刷电路板，抗氧化，在恶劣环境中保护内部IDC触点正常工作。
   RJ45 port, lead-free printed circuit board, antioxidant, protection of internal IDC contacts in bad environment to work normally.
   金针为磷青铜丝线镀金，防止表明氧化，提高接触性能，保证性能及适用寿命。
  Gold needles are plated for phosphor bronze wire to prevent oxidation, improve contact performance, ensure performance and shelf life.

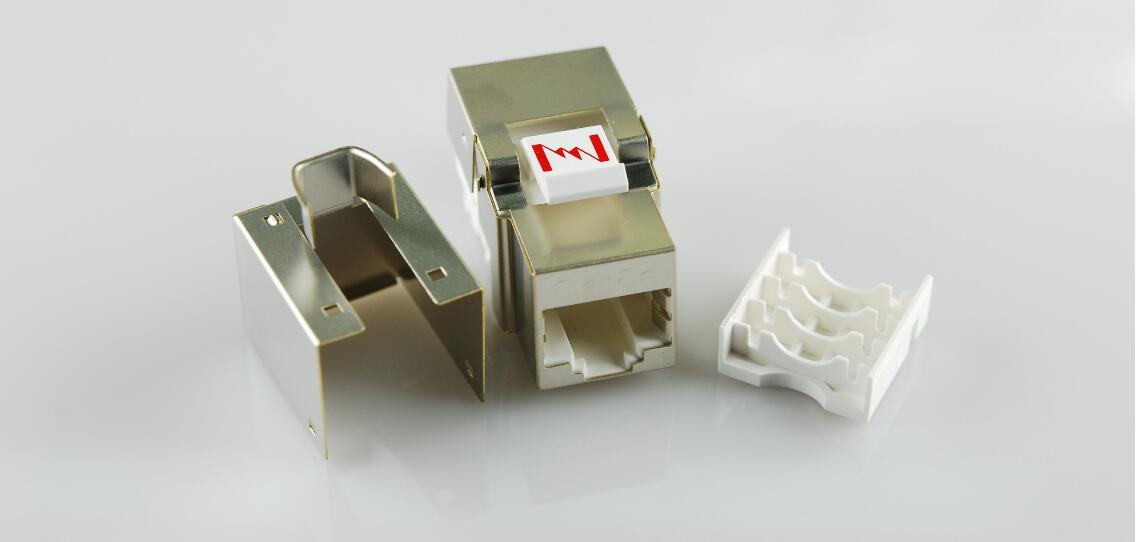

   屏蔽外壳层采用合金铜片全包方式，抗腐蚀、抗氧化、抗撞击及优良屏蔽性能。
   The shielding shell is made of alloy copper in full package, which is resistant to corrosion, antioxidation, impact resistance and excellent shielding performance.
  采用优质阻燃聚碳酸酯材料，符合UL94V-0防火要求。
  Make by high quality flame retardant polycarbonate，accord with UL94V-0 fire protection requirements.
  信息模块尾部接地固定装置设置方便，快速完成屏蔽线缆导流线接地。
  Installation of grounding fixtures at the end of information module is convenient，fast completion of shield wire guide line grounding.
  通用线序标签支持T568A和T568B端接线序，背部防尘盖。
   General line sequence tags support T568A and T568B terminal connection order, back dustproof cover.
  超五类信息模块兼容日线系列面板。
   Cat.5e information module is compatible with NISSEN's a series of panel.


物理特性 Physical properties

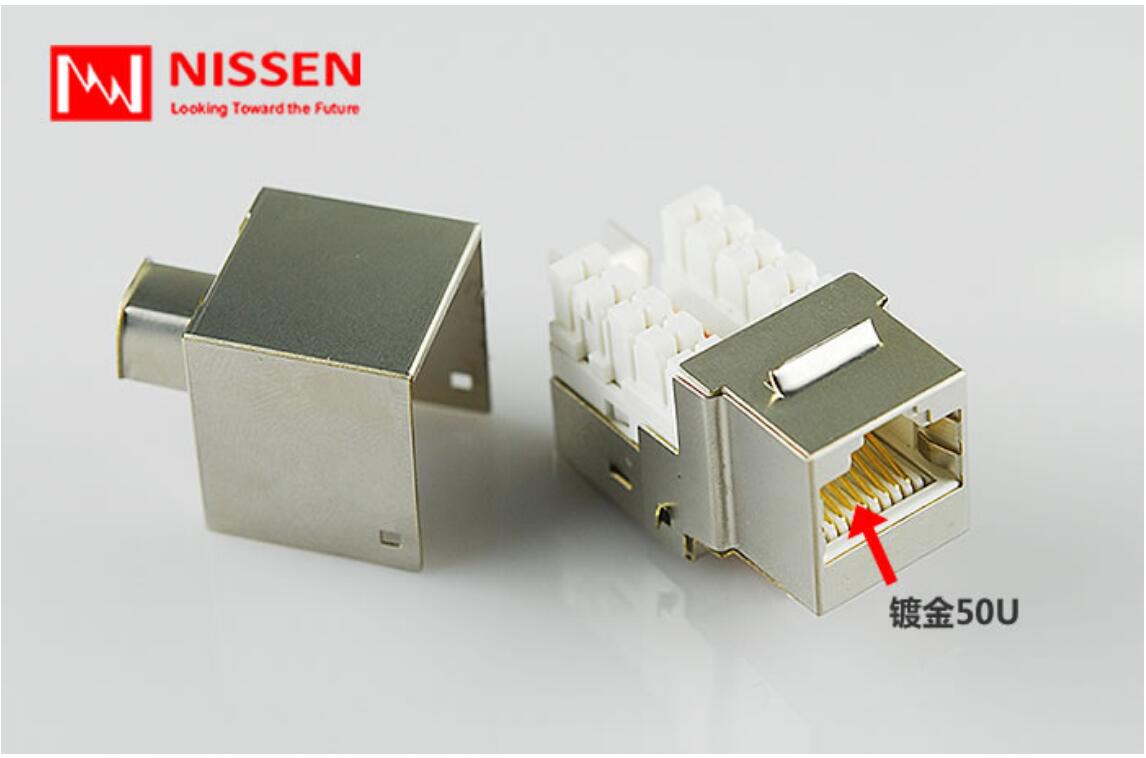

•    金针：磷青铜，50μ inch 镀金。
    Golden needles: Phosphor bronze，the whole modularis 50μ inch gold-plated.
     外壳：磷青铜整体镀镍。
    Shell: phosphorus bronze as a whole nickel plating.
     插头与插座的插合次数 ≥ 1000
    Intercalation times of plugs and sockets：≥ 1000
     IDC端子：磷青铜、整体镀镍、镀锡、卡接22-26AWG导体。
     IDC terminal：Phosphor bronze、whole nickel plating、tin-plating、sticking 22-26AWG conductor.
     导线端接次数 Wire's terminal times ≥ 200，插拔次数 Durability ≥ 1000

•    温度 Temperature：
  储存时 Storage：-40℃到70℃
  安装时 Install：-10℃到60℃
  工作时 Working：-10℃到60℃


生产标准及规范 Production standards and specifications

• 符合IEC60603-7-3/2关于超五类元件的标准
  国际ISO/IEC 11801:2002;      美国ANSI/TIA-568-C.2;
  欧洲EN50173:2002;      中国GB50311-2007




应用领域 Areas of application

•    复杂电磁环境下，及按规定需要屏蔽的场合。
    Complex electromagnetic environment and the occasion that needs to be shielded according to the regulations.
     超五类水平信息点连接
    Cat.5e horizontal information point connection.
     CP点连接
    CP point connection
     模块化配线架连接
    Modularization wiring frame connection
     100Mbps及更高以太网应用
    100Mbps and higher Ethernet Applications
