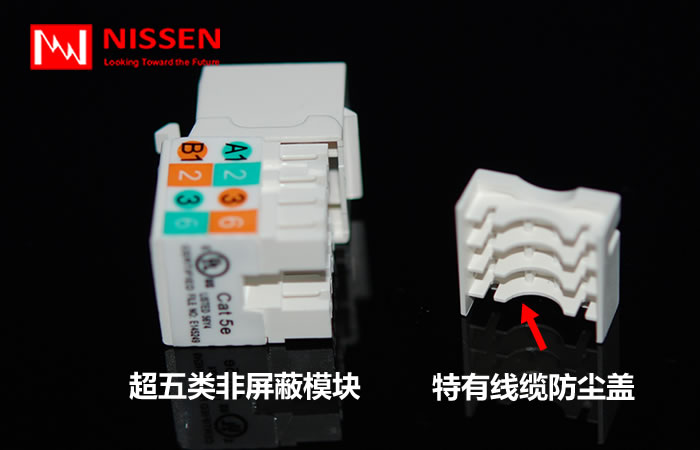

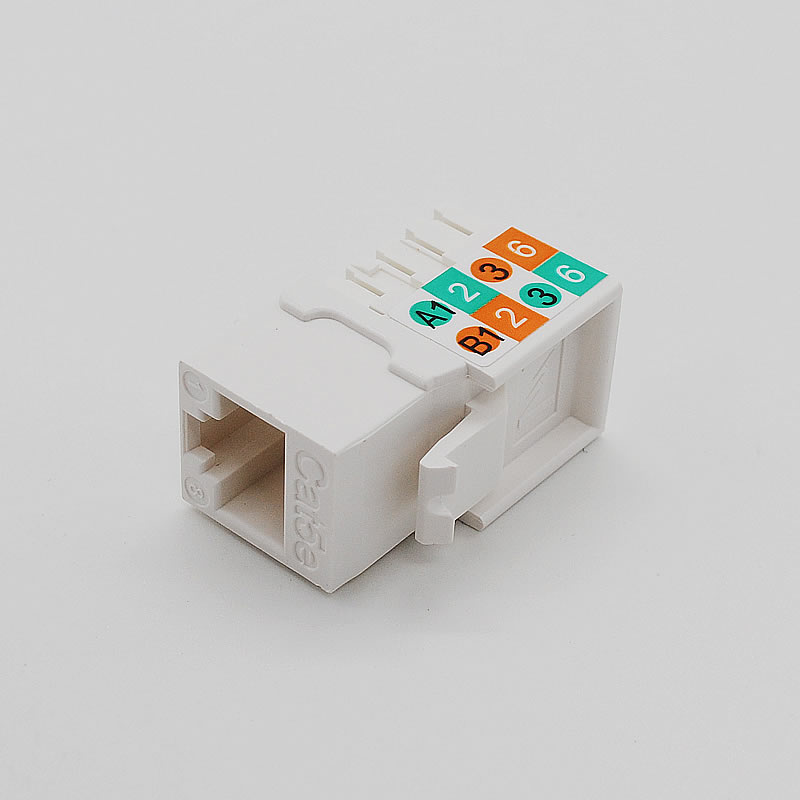

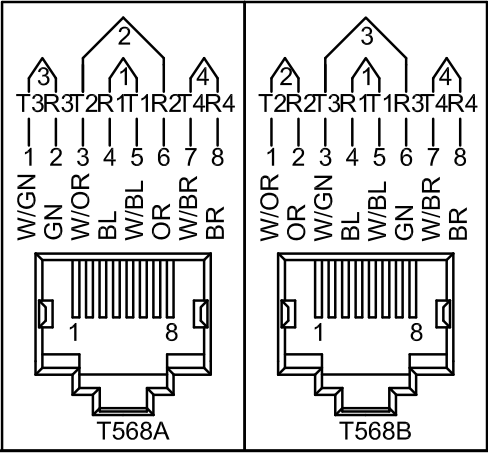

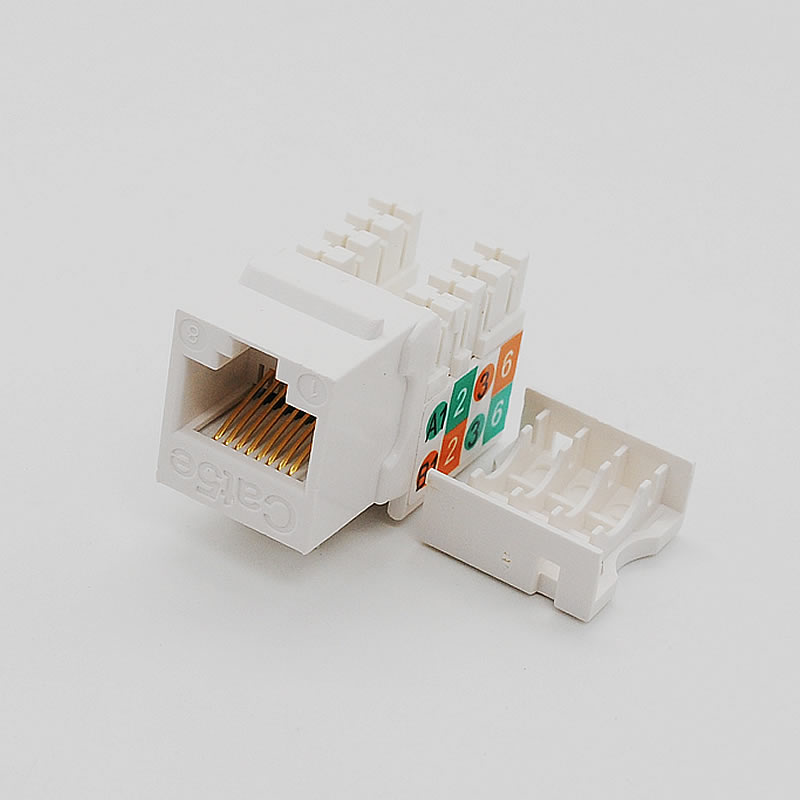

传输速率高达1000Mbps，传输带宽达150MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有D级链路和超五类的应用。 The transmission rate is up to 1000Mbps, and the transmission bandwidth is 150MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all D level links and Cat.5e kinds of applications. RJ45端口，无铅印刷电路板，抗氧化，在恶劣环境中保护内部IDC触点正常工作。 RJ45 port, lead-free printed circuit board, antioxidant, protection of internal IDC contacts in bad environment to work normally. RJ45水晶头采用进口PC料，金针采用磷青铜，整体表面镀金，镀金厚度为50U",确保优良电气性能和抗氧化性。 Crystal head adopts imported PC, gold needle uses phosphorus bronze, gold plating on the whole surface, gold plating thickness of 50U ", to ensure excellent electrical performance and oxidation resistance. 背部110型打线式的结构，使打线容易，施工更快捷。 The back 110 type of line type structure makes the wiring easy and the construction is quicker. 通用线序标签支持T568A和T568B端接线序，背部防尘盖。 General line sequence tags support T568A and T568B terminal connection order, back dustproof cover. 模块体采用阻燃ABS材料，阻燃等级符合UL94V-0。 The fire-retardant ABS material was used in the module, and the flame retardant grade accorded with the UL94V-0. 超五类信息模块兼容日线24口空架和系列面板。 Cat.5e information module is compatible with NISSEN's empty distribution frame and a series of panel.

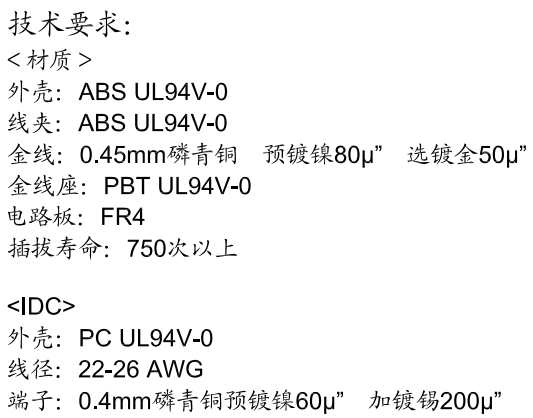

物理特性 Physical properties

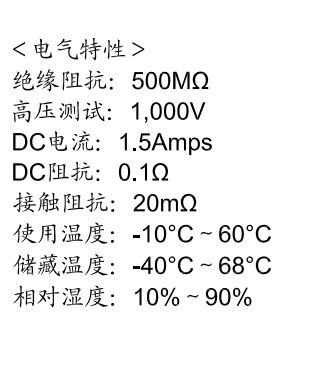

电气性能远超过IEC60603-7，ANSI/TIA-568C.2标准。
Electrical performance is far more than IEC60603-7, ANSI/TIA-568C.2 standard. 金针：磷铜合金，整体50μ inch 镀金。 Golden needles: Copper alloy，50μ inch golding of the whole. IDC端子：磷青铜、整体镀镍、镀锡、卡接22-26AWG导体。 IDC terminal：Phosphor bronze、whole nickel plating、tin-plating、sticking 22-26AWG conductor. 导线端接次数 Wire's terminal times ≥ 200，插拔次数 Durability ≥ 1000
