传输速率高达1000Mbps，传输带宽达150MHZ，传输数字，语音，数据和视频信号，满足高端需求尤其适合所有D级链路和超五类的应用。
The transmission rate is up to 1000Mbps, and the transmission bandwidth is 150MHZ. The transmission of digital, voice, data and video signals to meet the high-end demand is especially suitable for all D level links and Cat.5e applications.
绝缘层与导体的密着性(紧包)大于45N/50mm，且芯线退扭率要求达58%以上。
The tightness (tight) of the insulating layer and the conductor is greater than 45N/50mm, and the retreating rate of the core line is more than 98%.
芯线绞线方向与成缆绞线方向为反方向，且成缆采用100%退扭，确保线缆结构的稳定性及笔直性。
The direction of the wire stranded wire is opposite to the direction of the cable stranded line, and the cable adopts 100% back twisting to ensure the stability and the straight character of the cable structure.

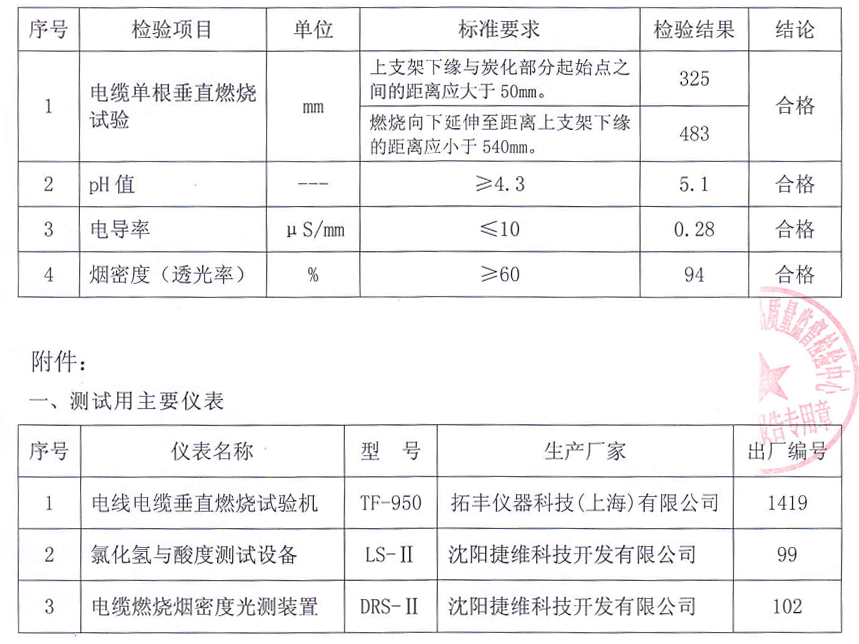

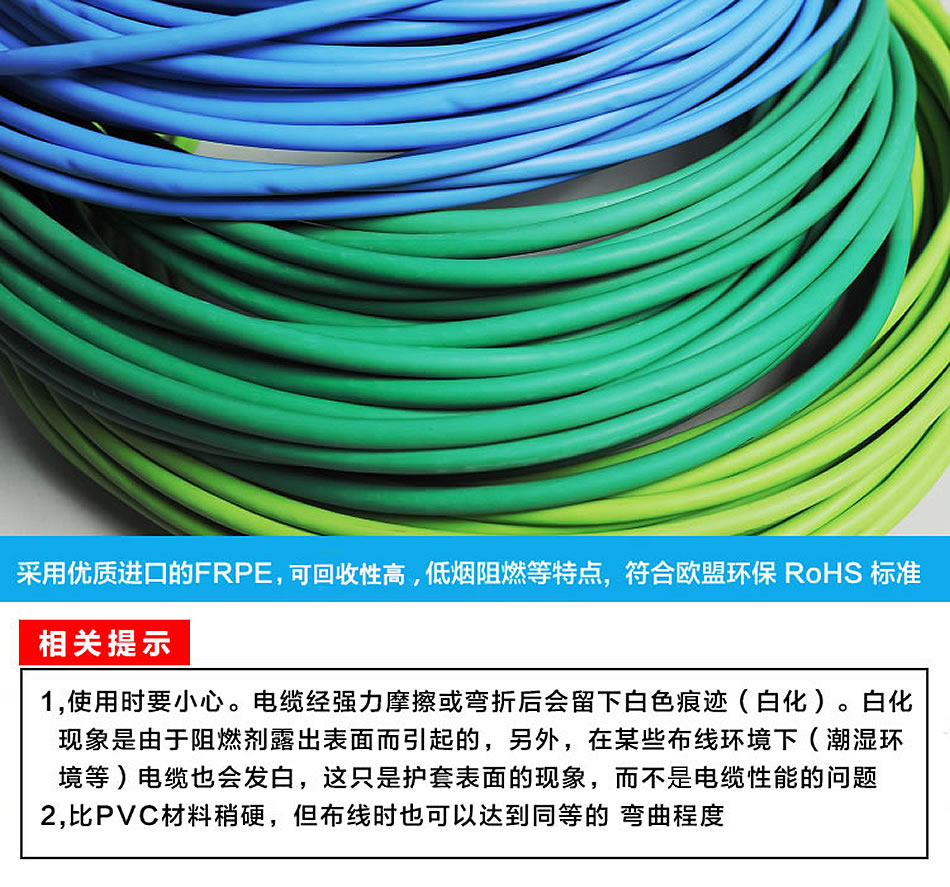

线材外被为阻燃低烟无卤PE塑料（FRPE），燃烧试验要符合GB/T 18380.12-2008标准，pH值要大于4.3, 电导率要小于1μS/mm，透光率要大于90%.（针对低烟无卤外被）。
Outside the wire for flame retardant low smoke halogen-free PE plastic (FRPE), combustion test to meet the GB/T 18380.12-2008 standard, pH value is higher than 4.3, the conductivity is less than 1 S/mm, the transmittance is greater than 90%. (for low smoke halogen outside).
外被颜色具有15种颜色可供选择，且从外箱能清楚识别。
Coat color has 15 colors for choice, and from outside the box can clearly identify.
印字采用梯减方式，施工过程中能直观地知道每箱线所剩长度。
In the process of the printing, the length of each line can be intuitively known in the process of construction.
