传输速率高达10Mbps，传输带宽达16MHZ，传输数字，语音，数据和视频信号，适合所有C级链路和三类的应用。
The transmission rate is up to 10Mbps, and the transmission bandwidth is 16MHZ. The transmission of digital, voice, data and video signals.For all C level links and Cat.3 applications.

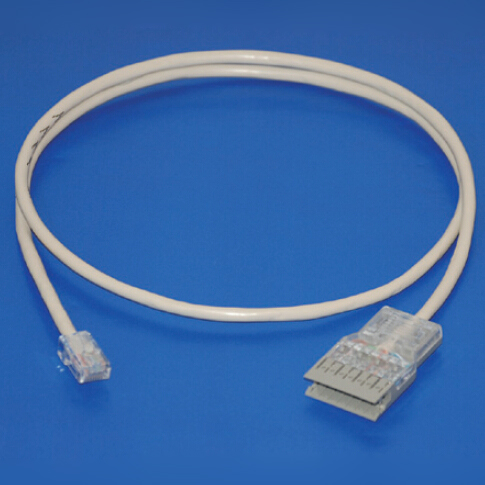

一端采用110鸭嘴接头，另一关采用RJ11水晶头。
One end is made of 110 duckbill joint and the other is RJ11 crystal head.
成缆采用30%退扭，确保线缆结构的稳定性及笔直性。
Cable adopts 100% back twisting to ensure the stability and the straight character of the cable structure.
物理特性 Physical properties
电气性能远超过ANSI/TIA-568C.2标准。
Electrical performance is far more than ANSI/TIA-568C.2 standard.
阻燃性符合GB/18380.12，JIS C 3005标准。
The flame retardancy is in accordance with GB/18380.12, JIS C 3005 standar.
弯曲半径 Bending radius：
固定时 When fixing ≥ 8倍外径 8 times the outer diameter
牵引时 When towing ≥ 10倍外径 10 times the outer diamete
拉伸强度 Tensile strength：≤ 110N
温度范围 Temperature range：
安装时 When installing：0℃ ~+50℃
工作时 When working：-20℃~+60℃
