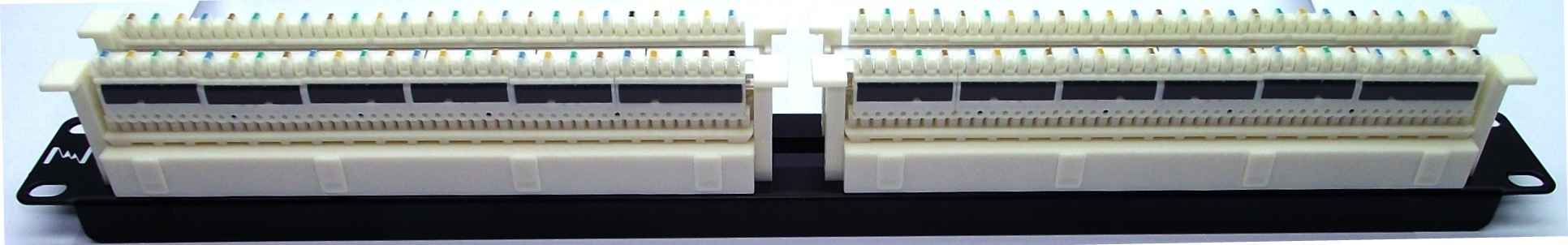

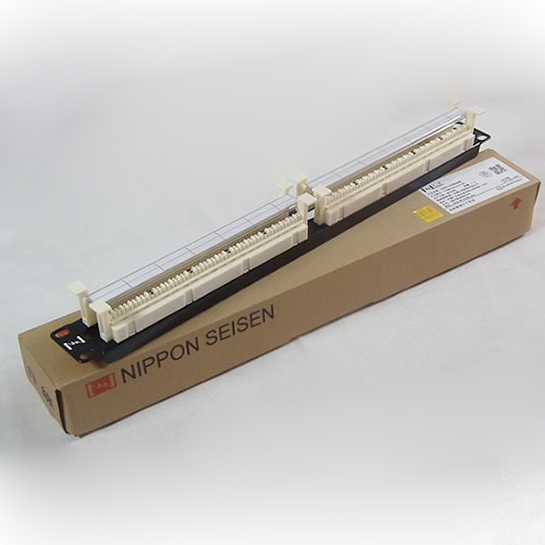

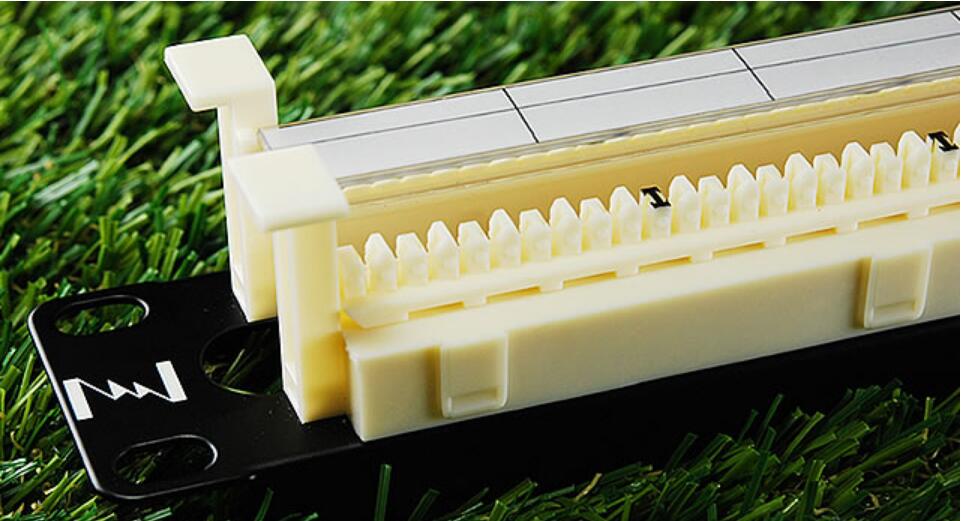

110型配线架

产品特征 Product features

•   传输性能参数满足ISO/IEC 11801，ANSI/TIA-568-C.2和YDT926.3-2009标准。
    The transmission performance is ISO/IEC 11801，ANSI/TIA-568-C.2 and YDT926.3-2009 standards.

•    金针为磷青铜丝线镀金，防止表面氧化，提高接触性能，保证性能及使用寿命。
     Gold needles are plated for phosphor bronze wire to prevent oxidation，improve contact performance，ensure performance and shelf life.
     连接部由4对和5对110连接块组成，110型打线块结构，分线更容易，施工更快捷。
    The connection consists of 4 pairs and 5 pairs of 110 connection blocks.
     50对配线架配备4对连接端子10个、5对连接端子2个，100对配线架配备4对连接端子20个、5对连接端子4个。
    50 pairs of wiring frames are equipped with 10 of four pairs of connection terminals , 2 of five pairs of connection terminals , 20 of a hundred pairs of wiring frames with four pairs of connection terminals , 4 of five pairs of connection terminals.
     金属背架，安装维护更方便、更快捷、更稳固。
     Metal back frame，it is more convenient to install and maintain，faster and more stable.
     塑胶件采用优质阻燃聚碳酸脂材料，符合UL94V-0防火要求。
    Plastic parts with high quality flame retardant polycarbonate material.


物理特性 Physical properties

•    金针：磷铜合金，整体50μ inch 镀金。
    Golden needles: Copper alloy，50μ inch golding of the whole.
     插头与插座的插合次数≥1000
     Intercalation times of plugs and sockets：≥1000
     IDC端子：磷青铜、整体镀镍、镀锡、卡接22-26AWG导体。
     IDC terminal：Phosphor bronze、whole nickel plating、tin-plating、sticking 22-26AWG conductor.
     导线端接次数≥300
     The number of wire and connection ≥ 300
     工作温度：-20℃-70℃
     Working temperature : -20℃-70℃


生产标准及规范 Production standards and specifications

• 国际ISO/IEC 11801:2002;      美国ANSI/TIA-568-C.2;
  欧洲EN50173:2002;      中国GB50311-2007




应用领域 Areas of application



•    适用于Cat.5e及以下的数据和语音系统的应用。
    It is suitable for application of Cat.5e and the followig data and voice systems.
     大对数电缆的集中端接。
    The centralized end connection of the large logarithmic cable.
     连接工作区的多用户通讯插座。
    Multiuser communication socket connecting the workspace.
